Charles Eames Herman Miller Side Chair Arm Chair Swivel Base Bushings
Charles Eames + Herman Miller + Side Chair + Arm Chair + Swivel Base Bushings

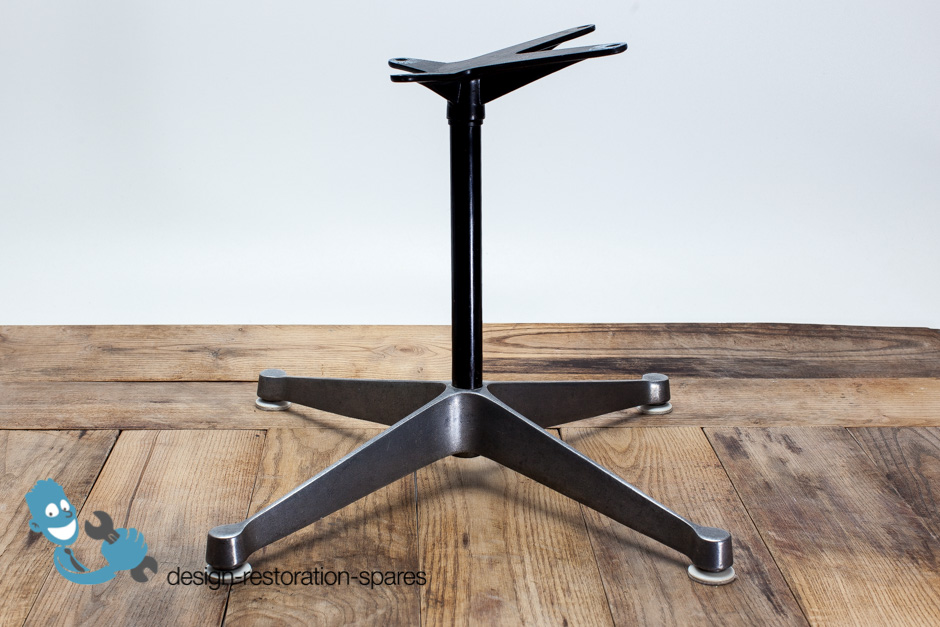

New bushings for Charles Eames Herman Miller Side Chair Arm Chair Swivel Base. Works not for height adjustable chairs with spindle.

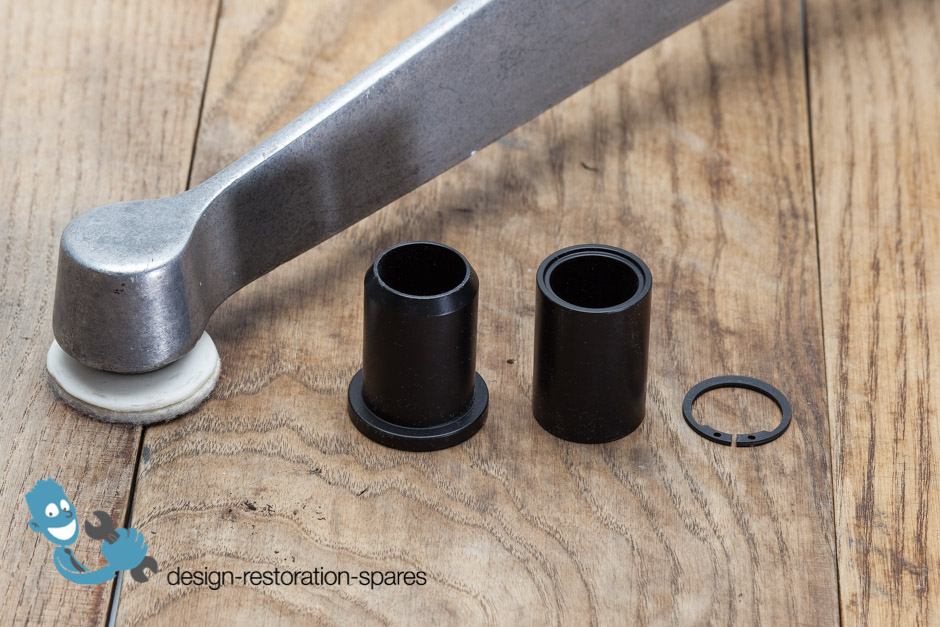

Set includes
1 x upper bushing
1 x lower bushing
1 x shaft lock ring
The base is not part of this offer, just the bushings and the ring.
Instruction:
1. remove the old bushings
2. press in the above bushing into the tube
3. press the lower bushing from underneath into the tube
4. do some slightly greasing
5. set in the rod with the support cross into the tube
6. set the ring from underneath into the groove
